The WF1560ATWFA5LEN0 from Winstar is an Full HD (High Definition) 15.6-inch IPS display module with a resolution of 1920×1080 pixels and a wide operating temperature range of -30~85°C. It incorporates IPS technology (left: 89 / right: 89 / top: 89 / bottom: 89 degrees), providing an expansive viewing angle, a high typical contrast of 1,500:1, and a typical brightness of 450 nits.

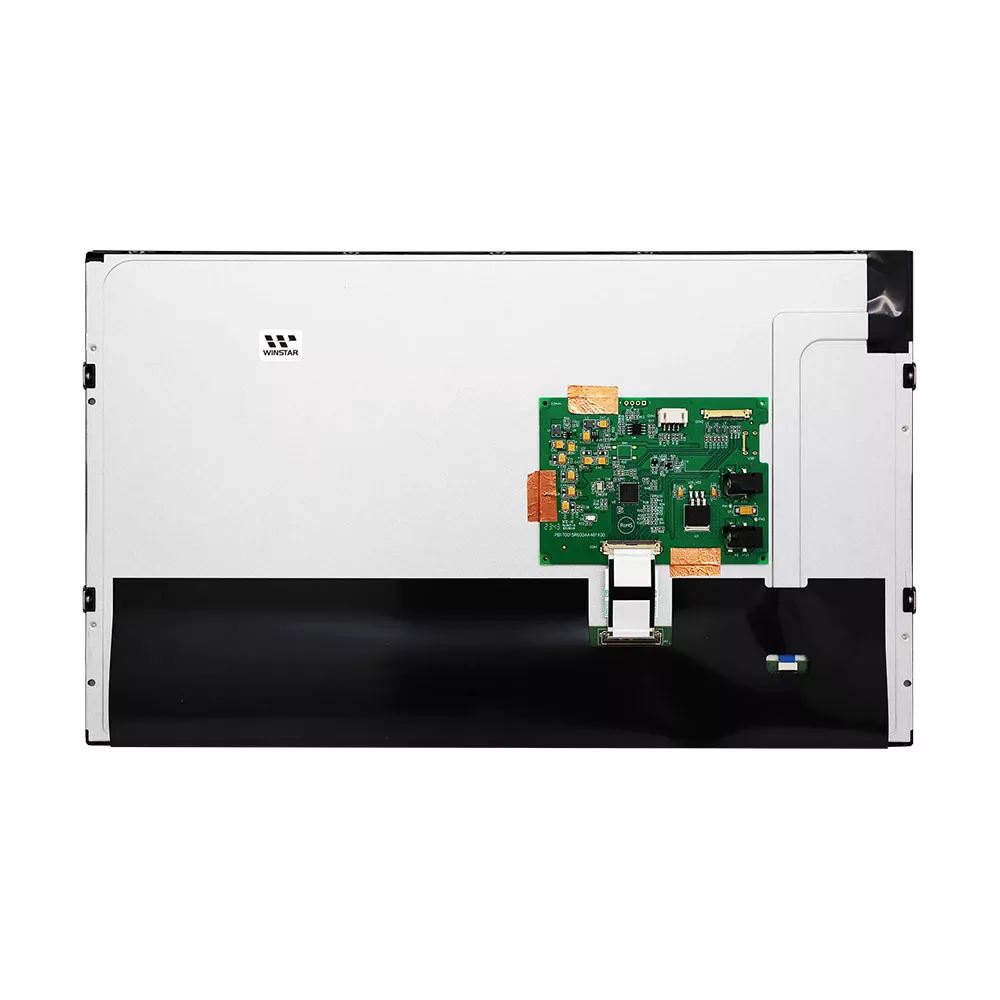

This Full HD (High Definition) IPS display module, WF1560ATWFA5LEN0, is equipped with a built-in CH7513A-BFI controller IC and supports the eDP (embedded DisplayPort) interface, enabling higher resolutions and frame rates. The Printed Circuit Board (PCB) on the module acts as a bridge or converter between the LVDS (Low Voltage Differential Signaling) interface and the eDP interface.

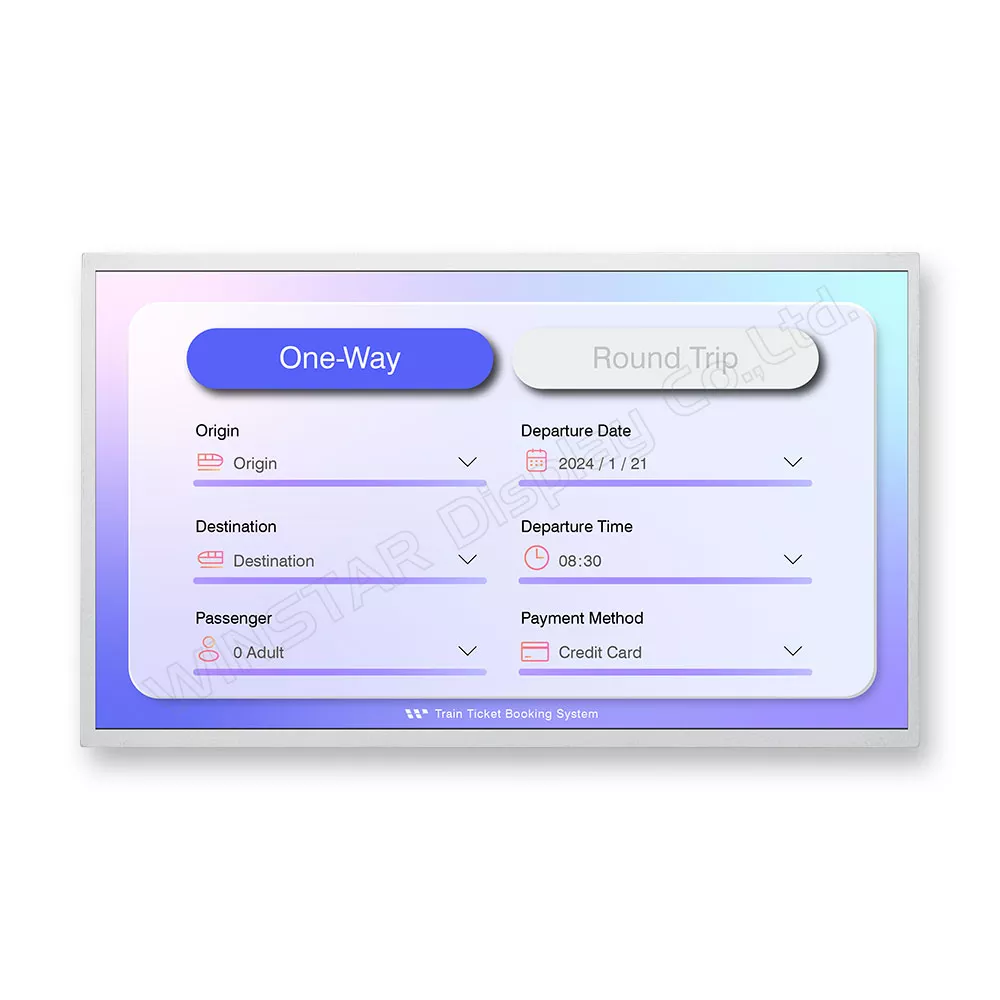

This 15.6-inch FHD (Full High Definition) IPS display is suitable for applications in public transportation ticket machines, such as Ticket Kiosks (ticket machines). Additionally, it is suitable for industrial control equipment, industrial test equipment, and POS systems.
The power supply voltage of the LCM is 4.7 V~5.3 V, with a typical value of 5 V. Operating temperatures range from -30°C to +85°C, while the storage temperature range covers -40°C to +90°C.
Specifications
- Size: 15.6-inch
- Dot Matrix: 1920 × 1080 dots
- Module Dimensions: 363.8 × 215.9 × 20.8 mm
- Active Area: 344.16 × 193.59 mm
- Viewing Angles: 89/89/89/89 (IPS)
- Controller IC: CH7513A-BFI
- Interface: eDP
- Touch Panel: Without Touch Panel
- Surface: Anti-Glare
- Brightness: 450 cd/m2
- Operating Temperature: -30~+85℃
