Winstar 1.28 inch OLED display module – COG ZIF version

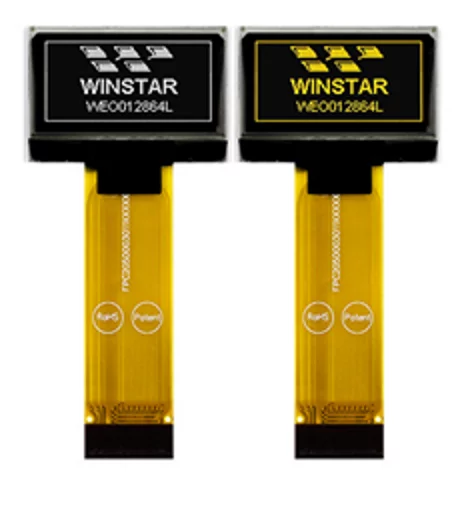

Winstar WEO012864L-ZIF is a 1.28″ COG ZIF version OLED display module; it’s made of 128×64 dot matrix format. This 1.28 inch Graphic OLED module is built in with controller SH1106G IC; it supports 8-bit 6800 and 8080, 3-wire/4-wire SPI and I2C interfaces. WEO012864L-ZIF module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, medical device, IoT system, etc. This model is available in white and yellow colors. For detail information, please contact us.
Versions
WEO012864LLAP3N00F00:Yellow
WEO012864LWAP3N00F00: White
Video
https://www.youtube.com/watch?v=92n73PfjbnA
Details
|
WEO012864L-ZIF |
Dimension |
|
Dot Matrix |
128 × 64 |
|
Module dimension |
34.50 × 23.00 × 1.65 mm |
|
Active Area |
29.42 × 14.20 mm |
|
Pixel Size |
0.205 × 0.197 mm |
|
Pixel Pitch |
0.230 × 0.222 mm |
|
Display Mode |
Passive Matrix OLED |
|
Display Color |
Yellow / White |
|
Drive Duty |
1/64 Duty |
|
Controller |
IC SH1106G |
|
Interface |
6800/8080/3-SPI /4-SPI / I2C |
|
Size |
1.28 inch |
WEO012864L-ZIF Contour Drawing & Block Diagram
